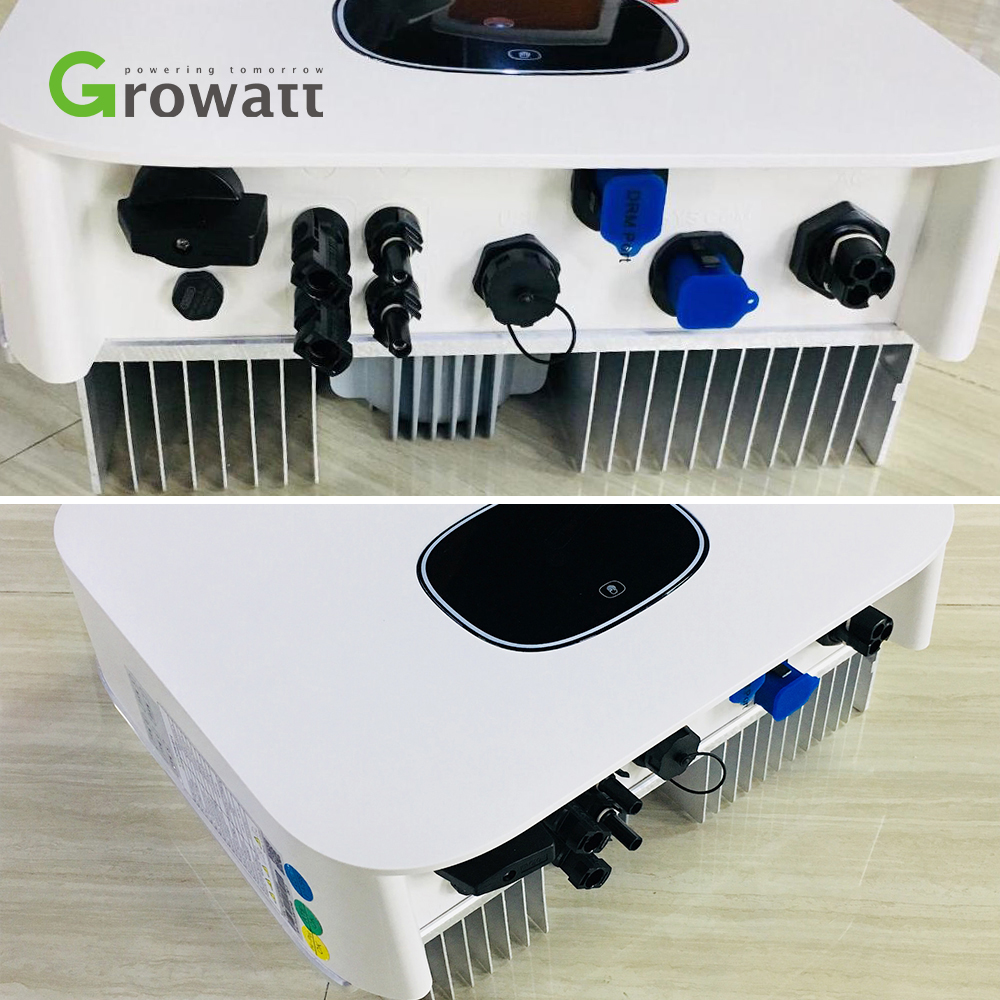

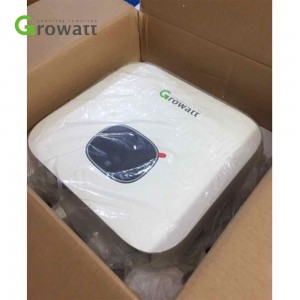

Growatt Min Series 3000/5000/6000TL-X

Short Description:

Growatt Min Series 3000/5000/6000TL-X

Product Detail

Product Tags

Product Details

3/5/6KW 2Mppts Single Phase

Datasheet	MIN 3000TL-X	MIN 5000TL-X	MIN 6000TL-X
Input Data (DC)
Max. recommended PV power (for module STC)	4200W	7000W	8100W
Max. DC voltage	500V	550V	550V
Start voltage	100V
Nominal voltage	360V
MPP voltage range	80V-500V	80V-550V	80V-550V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13.5A*
Max. short-circuit current per MPP tracker	16.9A
Output data (AC)
AC nominal power	3000W	5000W	6000W
Max. AC apparent power	3000VA	5000VA	6000VA
Nominal AC voltage（range*)	230V (180-280V)
AC grid frequency（range*）	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	13.6A	22.7A	27.2A
Adjustable power factor	0.8leading…0.8lagging
THDI	<3%
AC grid connection type	Single phase
Efficiency
Max.efficiency	98.2%	98.4%	98.4%
European efficiency	97.1%	97.5%	97.5%
MPPT efficiency	99.9%
Protection Devices
DC reverse polarity protection	yes
DC switch	yes
AC/DC surge protection	Type III / Type II
Insulation resistance monitoring	yes
AC short-circuit protection	yes
Ground fault monitoring	yes
Grid monitoring	yes
Anti-islanding protection	yes
Residual-current monitoring unit	yes
AFCI protection	Optional
General Data
Dimensions (W / H / D)	375/350/160mm
Weight	10.8kg
Operating temperature range	–25°C ... +60°C
Noise emission (typical)	≤35 dB(A)
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years	Yes /Optional
CE, IEC62109, VDE0126-1-1, AS4777, AS/NZS 3100, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC61727, IEC62116, INMETRO
