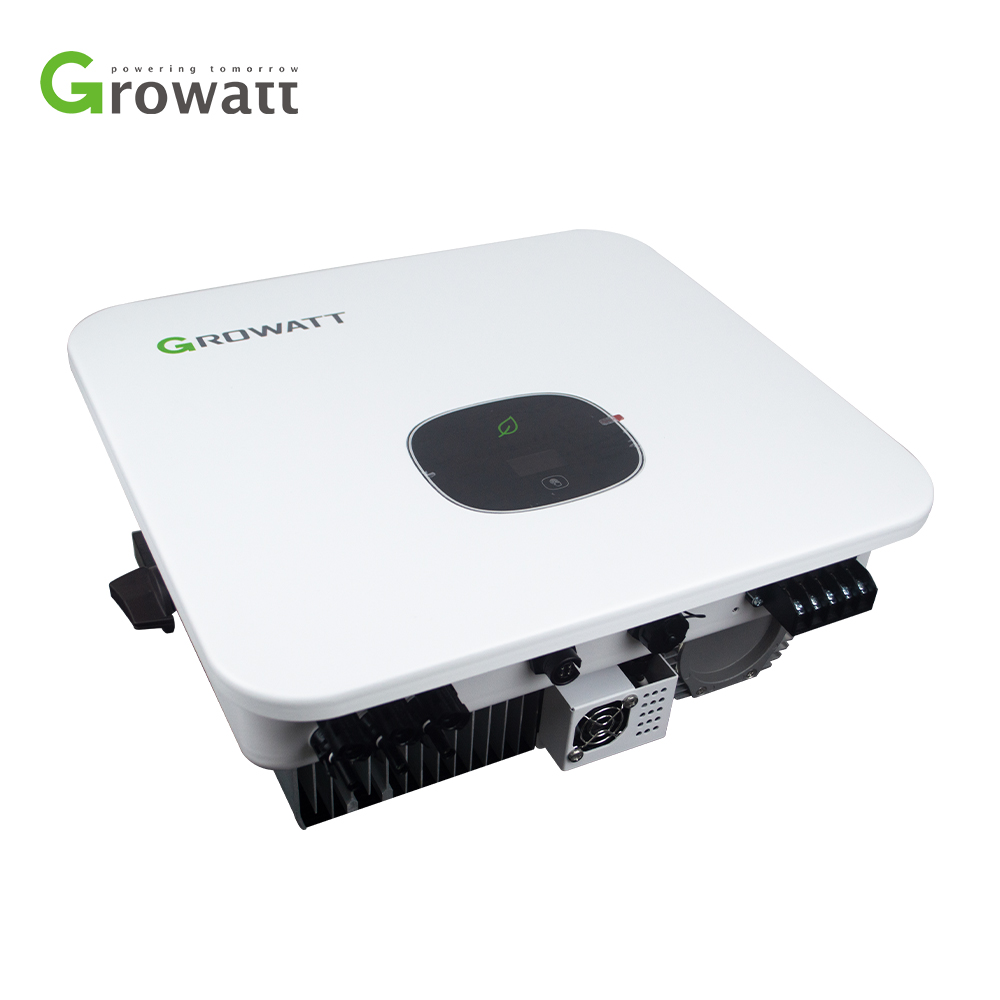

Growatt Mod Series 10KTL3-X 15KTL3-X
Product Details
10/15KW 2Mppts Three Phase
| Datasheet |
MOD 10KTL3-X |
MOD 15KTL3-X |
| Input Data (DC) | ||
| Max. recommended PV power (for module STC) |
15000W |
22500W |
| Max. DC voltage |
1100V |
|
| Start voltage |
160V |
|
| Nominal voltage |
580V |
|
| MPP voltage range |
140V-1000V |
|
| No. of MPP trackers |
2 |
|
| No. of PV strings per MPP tracker |
1 |
1/2 |
| Max. input current per MPP tracker |
13A |
13/26A |
| Max. short-circuit current per MPP tracker |
16A |
16/32A |
| Output data (AC) | ||
| AC nominal power |
10000W |
15000W |
| Max. AC apparent power |
11000VA* |
16500VA |
| Nominal AC voltage（range*) |
220V/380V, 230V/400V (340-440V) |
|
| AC grid frequency（range*） |
50/60 Hz (45-55Hz/55-65 Hz) |
|
| Max. output current |
16.7A |
25A |
| Adjustable power factor |
0.8leading…0.8lagging |
|
| THDI |
<3% |
|
| AC grid connection type |
3W+N+PE |
|
| Efficiency | ||
| Max.efficiency |
98.6% |
|
| European efficiency |
98.1% |
98.2% |
| MPPT efficiency |
99.9% |
|
| Protection Devices | ||
| DC reverse polarity protection |
yes |
|
| DC switch |
yes |
|
| AC/DC surge protection |
Type II/ Type II |
|
| Insulation resistance monitoring |
yes |
|
| AC short-circuit protection |
yes |
|
| Ground fault monitoring |
yes |
|
| Grid monitoring |
yes |
|
| Anti-islanding protection |
yes |
|
| Residual-current monitoring unit |
yes |
|
| String fault monitorin |
yes |
|
| AFCI protection |
Optional |
|
| General Data | ||
| Dimensions (W / H / D) |
425/387/178mm |
|
| Weight |
14kg |
16kg |
| Operating temperature range |
–25°C ... +60°C |
|
| Nighttime power consumption |
< 1W |
|
| Topology |
Transformerless |
|
| Cooling |
Natural convection |
|
| Protection degree |
IP66 |
|
| Relative humidity |
0-100% |
|
| Altitude |
4000m |
|
| DC connection |
H4/MC4(Optional) |
|
| AC connection |
Connector |
|
| Display |
OLED+LED/WIFI+APP |
|
| Interfaces: USB/RS485 / Wi-Fi/ GPRS/ LAN/RF |
Yes/Yes/Optional/Optional/Optional /Optional |
|
| Warranty: 5 years / 10 years |
Yes /Optional |
|
| CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2 | ||
