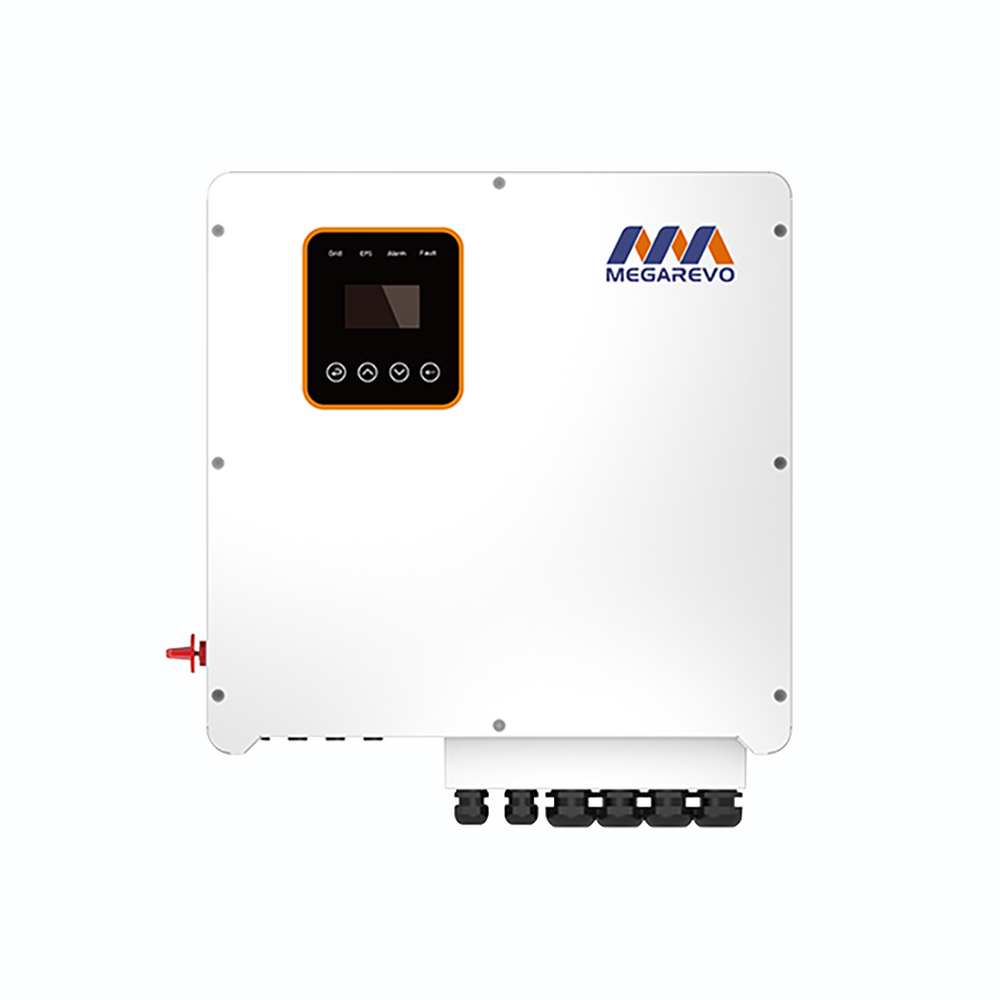

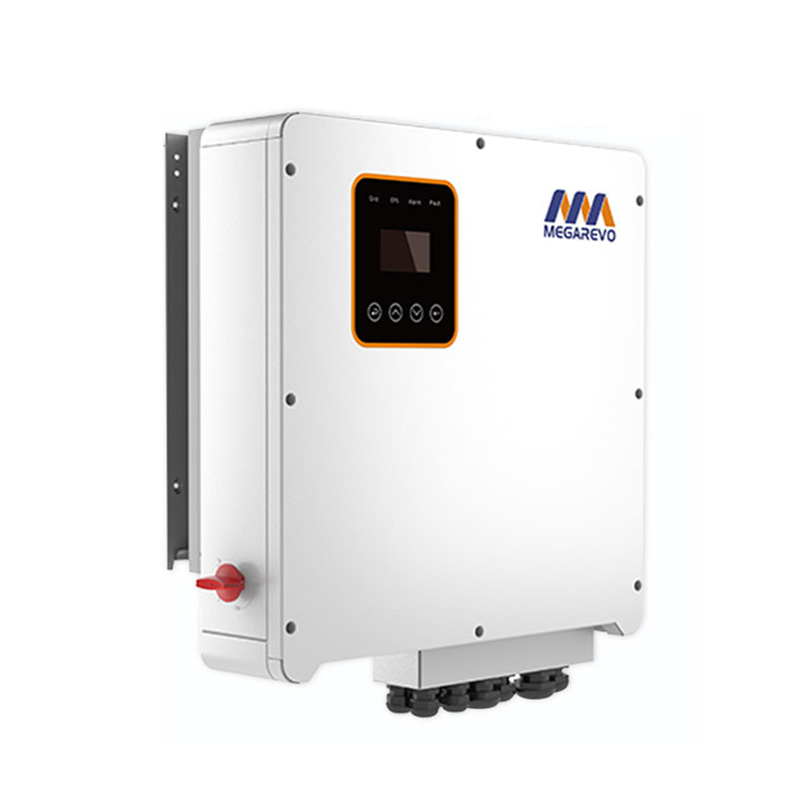

MEGAREVO R8KH3 R10KH3 R12KH3
Product Details
8/10/12KW 2Mppts Single Phase EU
| Technical specification |
R8KH3 |
R10KH3 |
R12KH3 |
| Input (PV) | |||
| Max.power(kW) |
10.4 |
13 |
15.6 |
| Max. DC voltage(V) |
1,000 |
||
| MPPT voltage range(V) |
180~850 |
||
| Max.input current of single MPPT(A) 12.5 | |||
| MPPT tracker/strings |
2/1 |
||
| AC output | |||
| Rated output power(kVA) |
8.8 |
11 |
13.2 |
| Max. output current(A) |
12.7 |
15.9 |
19.1 |
| Grid voltage/range(V) |
400/360~440 |
||
| Frequency (Hz) |
50 /60 |
||
| Power factor |
0.8lagging-0.8leading |
||
| THDI |
<3% |
||
| AC output topology |
3W+N+PE |
||
| Battery | |||
| Battery voltage range(V) |
125~600 |
||
| Max. charging voltage(V) |
600 |
||
| Full battery voltage(V) |
210 |
270 |
250 |
| Max. charge/discharge current(A) |
40 |
40 |
50 |
| Battery type |
Lithium /Lead-acid |
||
| Communication Interface |
CAN/RS485 |
||
| EPS output | |||
| Rated power(kVA) |
8.8 |
11 |
13.2 |
| Rated output voltage(V) |
400 |
||
| Max. output current(A) |
12.7 |
15.9 |
19.1 |
| Rated frequency(Hz) |
50 /60 |
||
| Automatic switching time(ms) |
<20 |
||
| THDI |
<2% |
||
| Overload capacity |
110%, 30S/120%, 10S/150%, 0.02S |
||
| General data | |||
| Battery charge /discharge efficiency |
96.6% |
96.7% |
96.8% |
| DC Max. efficiency |
97.9% |
98.2% |
98.2% |
| Europe efficienc |
97.2% |
97.5% |
97.5% |
| MPPT efficiency |
99.5% |
99.5% |
99.5% |
| Ingress protection IP65 | |||
| Noise emission(dB) |
<35 |
||
| Operation temperature |
-25℃~ 60℃ |
||
| Cooling |
Natural |
||
| Relative Humidity |
0 ~95%(non-condensing) |
||
| Altitude |
2,000m (>2,000 Derating) |
||
| Dimensions W * D * H (mm) |
530*200*600 |
||
| Weight(kg) |
29 |
||
| Isolation transformer |
No |
||
| Self-consumption(W) |
<3 |
||
| Display and communication | |||
| Display |
LCD |
||
| Interface:RS485/Wifi/4G/ CAN/DRM |
Yes/ Opt/ Opt/ Yes/ Yes |
||
| Safety standard |
IEC/EN62109-1/-2, IEC/EN62477-1 |
||
| EMC |
IEC/EN 61000-6-1, IEC/EN 61000-6-3 |
||
| On-grid Europe：EN50549-1, Germany：VDE4105/0124，UK：G99，South Africa：NRS097-2-1:2017 | |||
