XC-Flexible Solar Panel 60-200W
Product Details
Technical Specification Data Sheet of Solar Panel:
|
TPT Semi-Flexible Solar Panel |
||||
| model number | Specification | Dimensions (mm) | Single package size (mm) | Weight (KG) |
| XC-30-36MF | 21V 30W | 520*350*2mm | 530*360*32mm | 0.7kg |
| XC-60-36MF | 20V 60W | 945*350*2mm | 945*350*2mm | 1.5kg |
| XC-80-36MF | 19V 80W | 1155*365*2mm | 1165*375*32mm | 1.7kg |
| XC-100-36MF | 18V 100W | 1160*450*2mm | 1170*460*32mm | 1.9kg |
| XC-150-36MF | 18V 150W | 1170*680*2mm | 1180*690*2mm | 2.1kg |
| XC-180-36MF | 21V 180W | 1260*710*2mm | 1270*720*32mm | 2.3kg |
| Individual packaging can be customized | ||||
|
ETFE Semi-Flexible Solar Panel |
||||
| model number | Specification | Dimensions (mm) | Single package size (mm) | Weight (KG) |
| XC-30-36MFE | 21V 30W | 520*350*2mm | 530*360*32mm | 0.7kg |
| XC-60-36MFE | 20V 60W | 945*350*2mm | 945*350*2mm | 1.5kg |
| XC-80-36MFE | 19V 80W | 1155*365*2mm | 1165*375*32mm | 1.7kg |
| XC-100-36MFE | 18V 100W | 1160*450*2mm | 1170*460*32mm | 1.9kg |
| XC-150-36MFE | 18V 150W | 1170*680*2mm | 1180*690*2mm | 2.1kg |
| XC-180-36MFE | 21V 180W | 1260*710*2mm | 1270*720*32mm | 2.3kg |
| XC-200-36MFE-A | 18V 200W | 1180*915-2mm | 1190*925*32mm | 2.7kg |
| XC-200-36MFE-B | 37V 200W | 1180*915*2mm | 1190*925*32mm | 2.7kg |
| Individual packaging can be customized | ||||
Applications

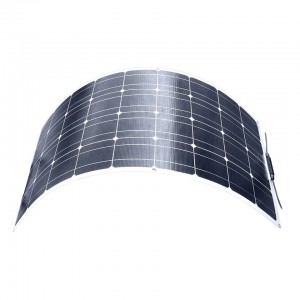

The new solar panel can be bent into a curved surface or any irregular shape. It can be placed on the top of streamlined cars, the cabin surface of sailing boats, racing boats, motorboats, and other buildings on the roof and exterior walls to make full use of abundant solar energy and convert it into electric energy, greatly promoting the application of solar energy, and make more civil use becomes possible.
Product advantages
1. Using XC SOLAR solar cells, efficiency>22%, produce higher power.
2. Three tests to ensure excellent performance of the panel(cell test, semi-finished product test, factory testing).
3. Use thicker packaging to ensure that the goods are in good condition when the customer receives the package.
