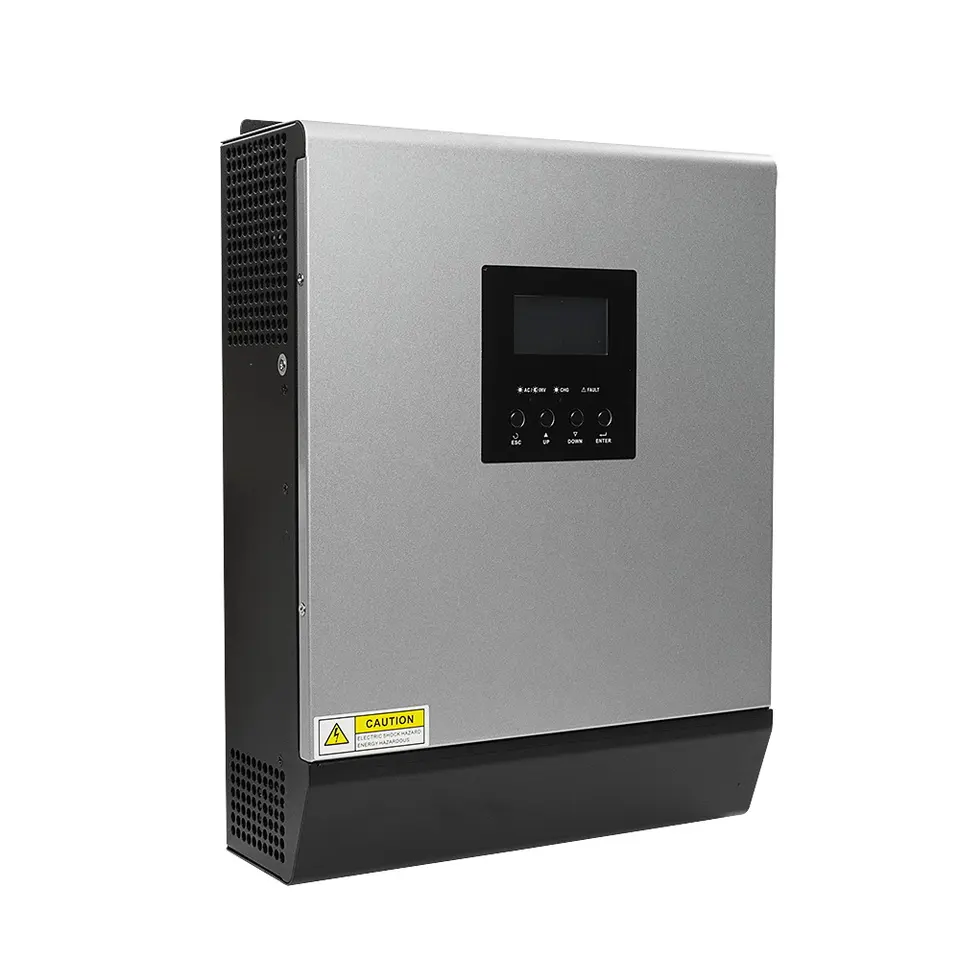

XC Solar SP-2200 SP-3200 2.2/3.2KW Off Inverter
Product Details
2.2/3.2KW 1Mppt
| Product Data Sheet |
| MODEL |
SP-2200 |
SP-3200 |
| Rated Power |
2200VA/1800W |
3200VA/3000W |
| INPUT |
|
|
| Voltage |
230VAC |
|
| Selectable Voltage Range |
170-280VAC(for personal computers) |
|
| Frequency Range |
50Hz/60Hz (Auto sensing) |
|
| OUTPUT |
|
|
| AC Voltage Regulation ( Batt . Mode) |
230VAC±5% |
|
| Surge power |
4400VA |
6400VA |
| Transfer Time |
10ms (for personal computers) |
|
| Wave form |
Pure Sine Wave |
|
| BATTERY & AC CHARGER |
|
|
| Battery Voltage |
12VDC |
24VDC |
| Floating Charge Voltage |
13.5VDC |
27VDC |
| Overcharge Protection |
15.5VDC |
31VDC |
| Maximum charge current |
60A |
60A |
| SOLAR CHARGER |
|
|
| Maximum PV Array Power |
2000W |
3000W |
| MPPT Range@Operating Voltage |
55-450VDC |
|
| Maximum PV Array Open Circuit Voltage |
450VDC |
450VDC |
| Maximum Charging Current |
80A |
80A |
| Maximum Efficiency |
98% |
98% |
| PHYSICAL |
|
|
| Dimension D*W*H(mm) |
405X286X98MM |
405X286X98MM |
| Net Weight (kgs) |
4 .5 kg |
5 kg |
| Communication Interface |
RS232/RS485(Standard) |
|
| OPERATING ENVIRONMENT |
|
|
| Humidity |
5% to 95% Relative H umidity(Non-condensing) |
|
| Operating Temperature |
0°C to 55°C |
|
| Storage Temperature |
- 15°C to 60°C |
|
